A roll cage is a structural safety structure, so the bender you choose is not a convenience purchase. If you are searching for the best tubing benders for roll cages, you are really making one decision: which machine can pull 1-5/8 or 1-3/4 inch DOM tube around a proper centerline radius without flattening the wall or kinking the outside of the bend. Get that wrong and every hour of fit-up work downstream is wasted.
Two arm-frame rotary draw benders, three powered ram machines and three multi-pass tube rollers made up this lineup. We read every customer review set, checked the published capacity against actual wall thickness rather than headline outside diameter, and mapped each machine to the cage job it can genuinely do. Only two of these eight are true arm-frame cage machines. The rest have honest limits, and we name them.
One warning before the picks. Most advertised maximum tube sizes assume mild steel at a shallow radius on a single bend. That is not what a main hoop looks like. A main hoop is four bends in one part, back to back, in 1-3/4 inch x .120 wall. Buy on that basis, not on the number printed on the box.
Table of Contents
Top 3 Best Tubing Benders for Roll Cages (October 2026)
Woodward Fab WFB2
- Arm-frame rotary draw
- degree ring and indicator included
- Takes standard Woodward Fab and Pro Tool dies
- 56 pounds
ECOTRIC Manual Tube and Pipe Bender
- Round tube up to 2 inch
- .125 inch wall round capacity
- Bolt-in frame with cast-iron base
- Upgradeable with an air or hydraulic ram
Affordable Bender ab105
- 8 ton bottle jack power
- Bends 1-3/4 inch tube up to 90 degrees
- Die set included
- 50 pounds
All 8 Tubing Benders Compared in 2026
| Product | Specifications | Action |
|---|---|---|
| Woodward Fab WFB2 |
|
Check Latest Price |
| ECOTRIC Manual Tube and Pipe Bender |
|
Check Latest Price |
| Affordable Bender ab105 |
|
Check Latest Price |
| Affordable Bender ab103 |
|
Check Latest Price |
 Speedway Motors Hydraulic Tubing Bender |
|
Check Latest Price |
 KAKA TR-40 |
|
Check Latest Price |
 KASTFORCE KF5013 |
|
Check Latest Price |
 VEVOR Tube Roller |
|
Check Latest Price |

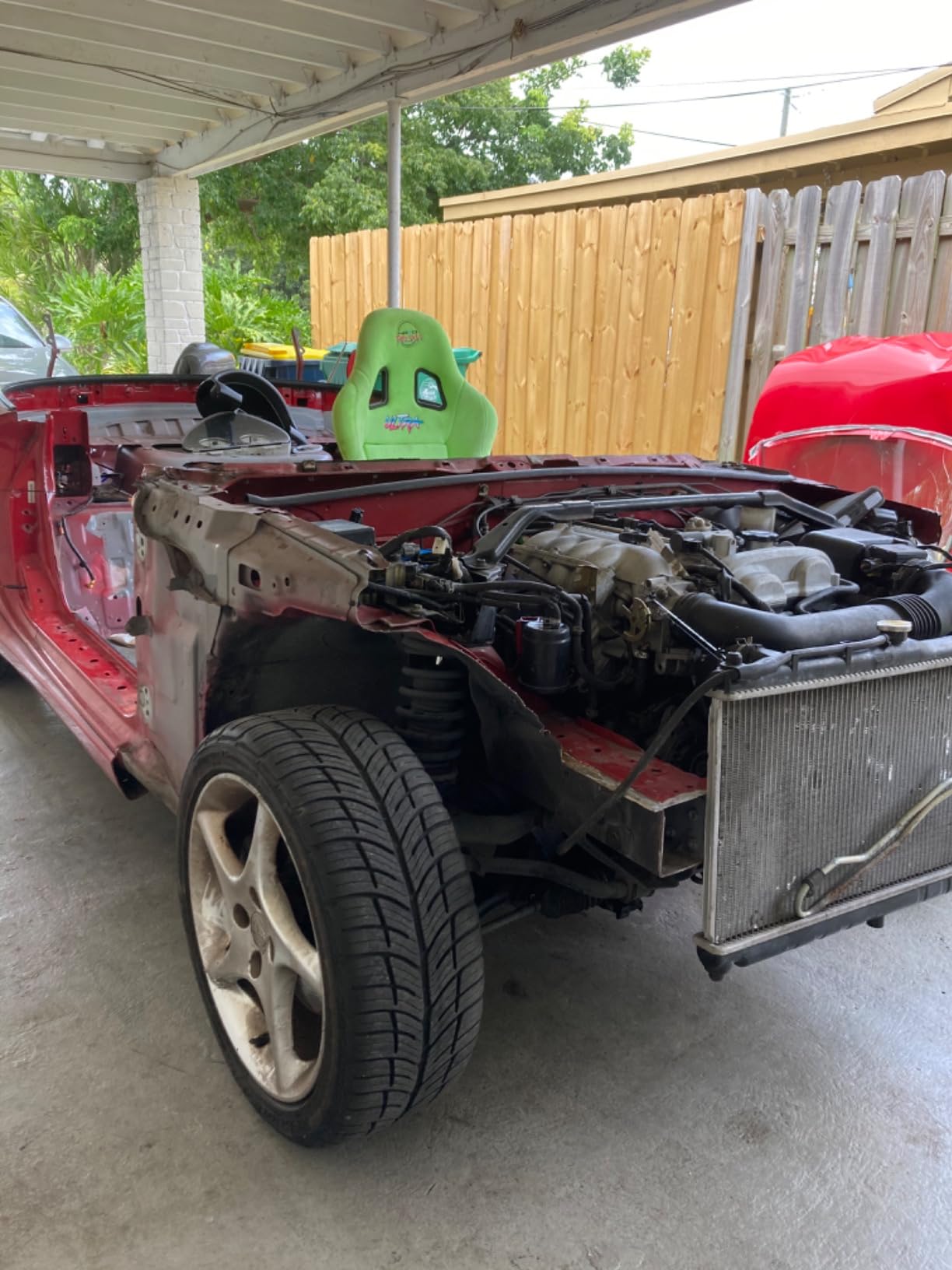

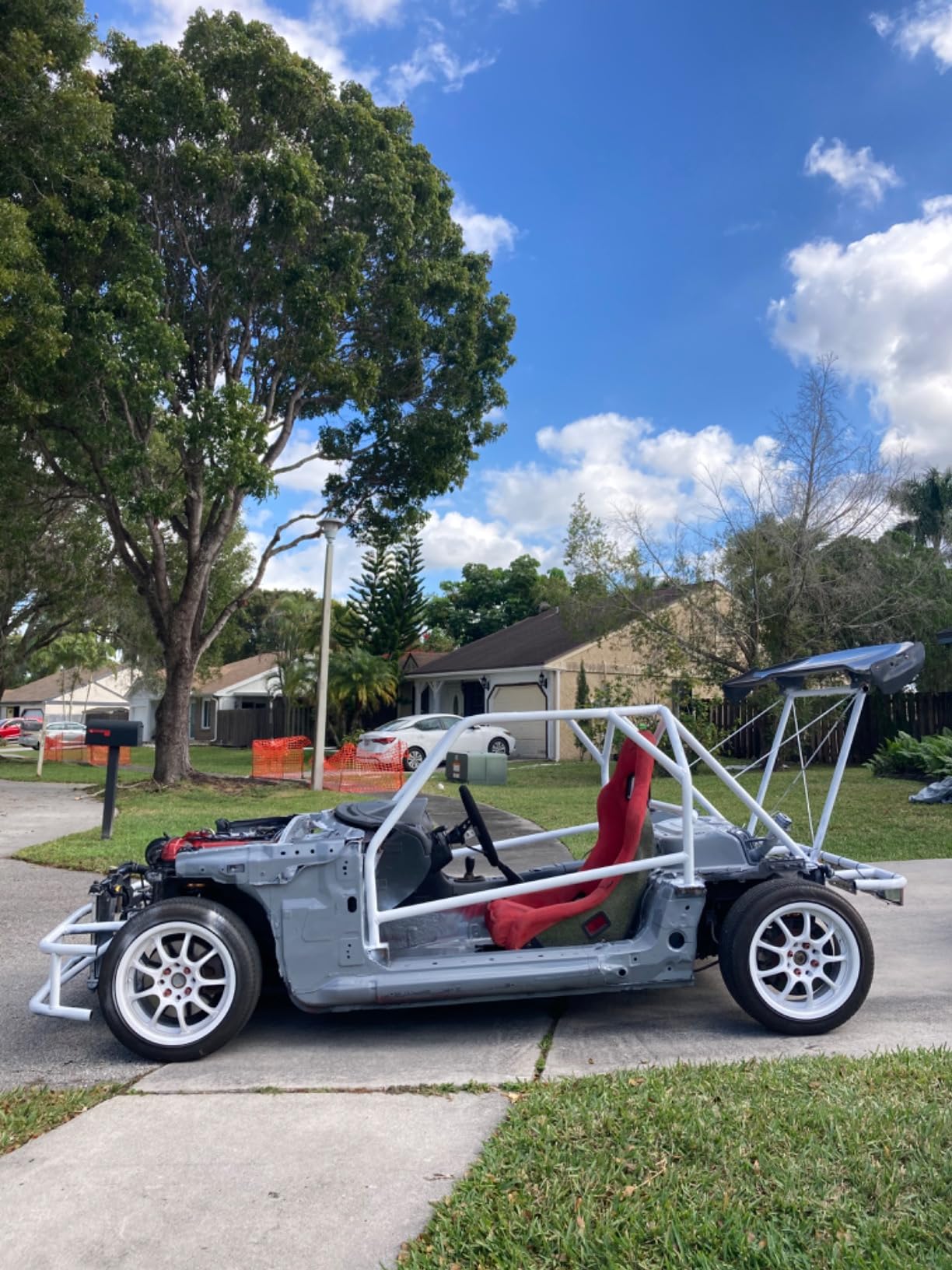

1. Woodward Fab WFB2 – Best Overall Arm-Frame Bender for Cage Tube
Woodward Fab Tube and Pipe Bender, Model# WFB2
Rotary draw arm-frame machine
56 pounds
24 x 18 x 12 inch footprint
Degree ring and indicator included
Accepts Woodward Fab and Pro Tool dies
Pros
- Highest rated machine in this roundup at 4.6 from 130 reviews
- Heavy steel frame that holds up under repeated 1-3/4 inch work
- Degree ring and indicator ship in the box so you can repeat angles
- Die ecosystem is huge because it is the shared standard
Cons
- Assembly instructions are thin and degree markings are hard to read
- Stand and anchor hardware are separate purchases
- Made in China rather than in the USA
The WFB2 is the machine we kept coming back to while building this list. It is a full-size arm-frame rotary draw bender, which means it works the way a professional fabricator’s machine works rather than the way a pipe bender works. Buyers use it for complete roll cage projects, and the 4.6 rating across 130 reviews is the strongest combination of rating and review volume anywhere in this roundup.
What separates it from the cheaper arm-frame units is the tooling ecosystem. The WFB2 accepts standard Woodward Fab and Pro Tool dies, which is the single most important compatibility fact on this page. If you already own dies from either family, they fit. If you are starting from zero, you are buying into the largest die catalog available to a home shop, which matters because made-to-order dies can take weeks to arrive.
The degree ring and indicator are the reason this machine is first. Repeatability on a cage comes down to hitting the same angle on all four bends of a hoop, and a mechanical degree wheel is more consistent than eyeballing a mark or guessing with a phone app. Reviewers who build cages specifically call this out as part of why the machine earns its place in a garage.
Its real weakness is documentation. Owners repeatedly note that the assembly directions are thin and the degree wheel markings are faint, particularly under load. Budget an evening with a phone video open before you start, and mark the degree ring with a paint pen on day one.
How it holds up on 1-3/4 inch DOM cage tube
This is where the arm-frame architecture pays off. The long lever gives you steady force on the pressure die, and steady force is what keeps the tube from ovaling at the tangent point. That matters most on a main hoop, where you are asking for four consecutive bends in the same length of tube and any distortion from bend one is still there at bend four.
The honest limitation is that this is a horizontal machine, and horizontal machines get bolted to concrete. If your garage floor is not poured or you rent the space, that is a real obstacle. An expanding anchor into a slab is acceptable; a machine walking across a plywood floor while you pull is not.
What to buy alongside it
A floor stand or weld table, a die set in the CLR you are actually using, and a length of scrap 1-3/4 inch tube to practice on. On CLR, ih8mud threads show builders weighing 5.5 inch against 6.5 inch centerline dies for 1-3/4 inch tube for weeks before buying, which is the right instinct: your bender is only as good as the die you put in it, and dies are specific to a radius.
Do not skip the practice bends. Cut six 12 inch lengths of the same wall thickness you plan to cage with and run them through every angle you will need. If the tube does not stay round on scrap, it will not stay round on the hoop, and the hoop is the piece you cannot redo cheaply.

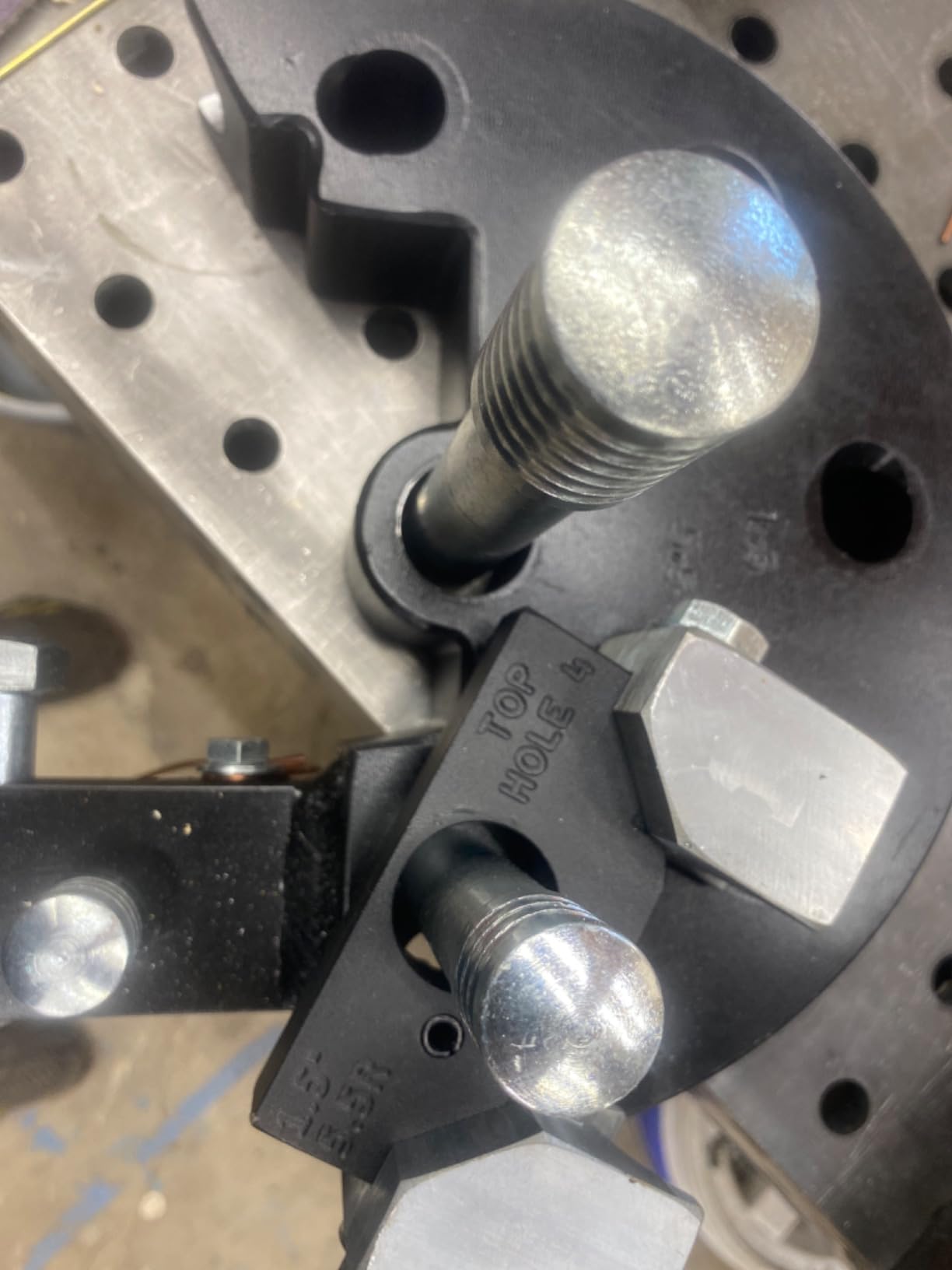

2. ECOTRIC Manual Tube and Pipe Bender – Budget Pick With a Hydraulic Upgrade Path
ECOTRIC Tube and Pipe Bender Black Oxide Coating Steel Manual Hand Bender
Rotary draw arm-frame machine
52.9 pounds
29.53 inch long
Round tube to 2 inch at .125 wall
Ratcheting handle
Cast-iron base
Pros
- Round tube up to 2 inch and square tube up to 1-1/2 inch
- Ratcheting handle adds leverage on heavy wall
- Cast-iron base and solid steel frame resist frame flex

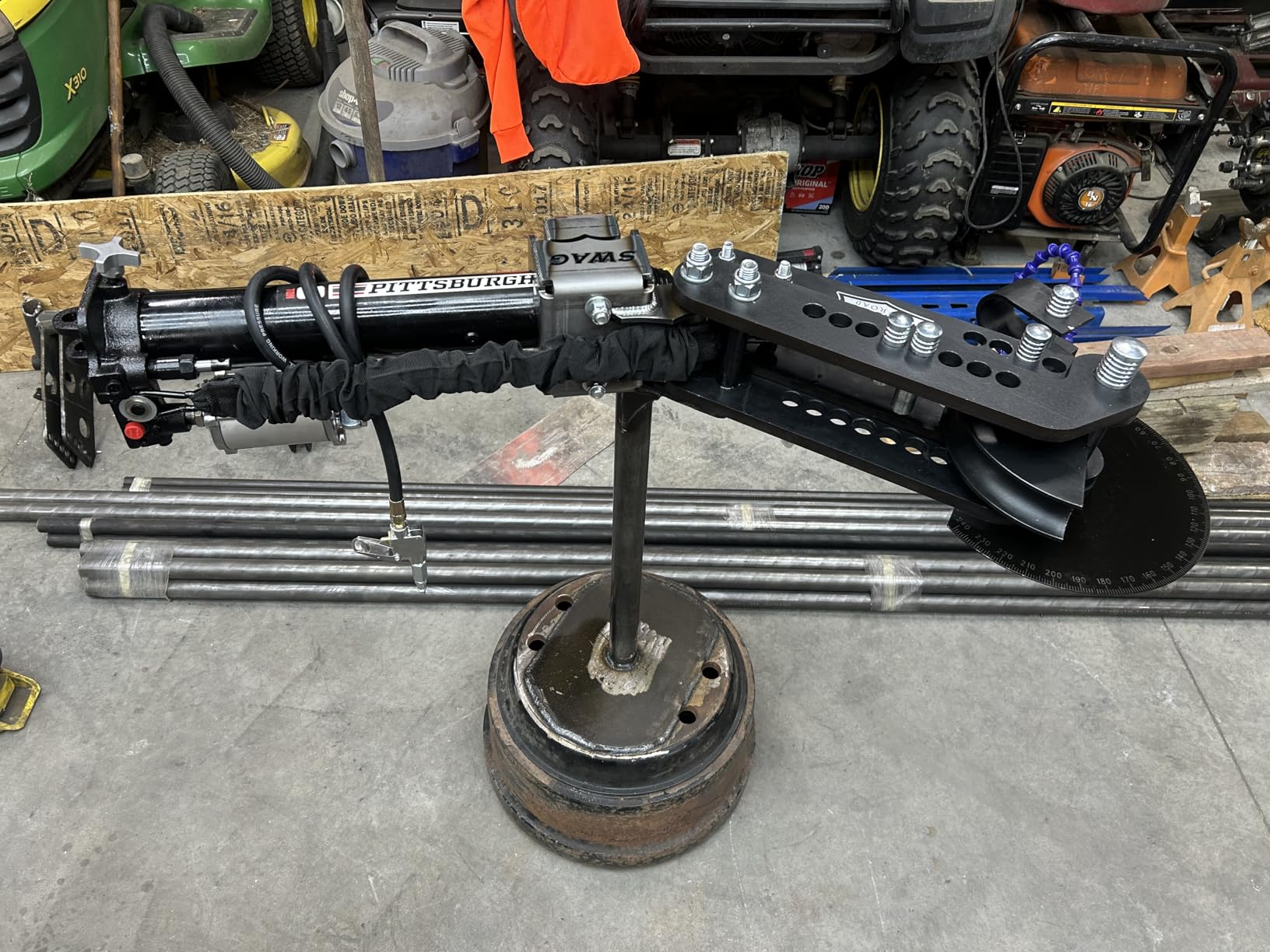

- Can be upgraded with an air or hydraulic ram for cage work
Cons
- Assembly instructions require cross-referencing photos or video
- Older Model 3 dies need modification before they fit
- Degree wheel markings are hard to see under load
The ECOTRIC is the value pick for a specific reason: it is the cheapest machine on this list that can be converted to hydraulic later. Buyers routinely finish full cages with it manually, then fit an air or hydraulic ram when the 1-3/4 inch wall gets tiring. That upgrade path is what separates it from a fixed-spec machine.
It also shares the tooling standard with the WFB2. Woodward Fab and Pro Tool dies fit without modification. The exception older owners run into is that legacy Model 3 dies need a small modification before they drop in, so if you are buying used tooling from a decade ago, check first.
Capacity is stated as round tubing to 2 inch at .125 wall and square tubing to 1-1/2 inch at 16 gauge. For cage work that means 1-5/8 and 1-3/4 inch round DOM is squarely inside its envelope, which is what you want. The cast-iron base and solid steel frame are the details that keep the bend angle consistent once the handle force is high.
The most common complaint is the same one we saw on the WFB2: instructions. Buyers assemble it by comparing photos and videos because the paperwork does not carry the job. The second most common is the degree wheel, which is hard to read while you are pulling. Neither is fatal, both are worth knowing about before you start.
Whether the manual force is enough for a full hoop
The ratcheting handle is the reason this machine is manageable by hand on heavy wall. A longer throw multiplies the force you can put on the handle, and the difference between a 32 inch and a 36 inch handle shows up on 1-3/4 inch x .120 wall after the third bend of a main hoop, when your arms are already tired. Manual bender fatigue is a real source of inconsistent pressure die force, and inconsistent force is where ovality starts.
If your project is one main hoop and one set of rear stays, manual is workable with breaks between bends. If you are building for a customer or planning to bend several cages a year, buy the ram kit before you start rather than after the third project.
Where it does not fit the job
Square tube capacity stops at 1-1/2 inch, which rules it out for common rock slider and bumper fabrication in 2 inch square. It is also not a mandrel machine, so very heavy wall at a very tight radius will get harder than you want. Neither limitation matters for a round-tube cage, and both matter a great deal the moment you leave that job.

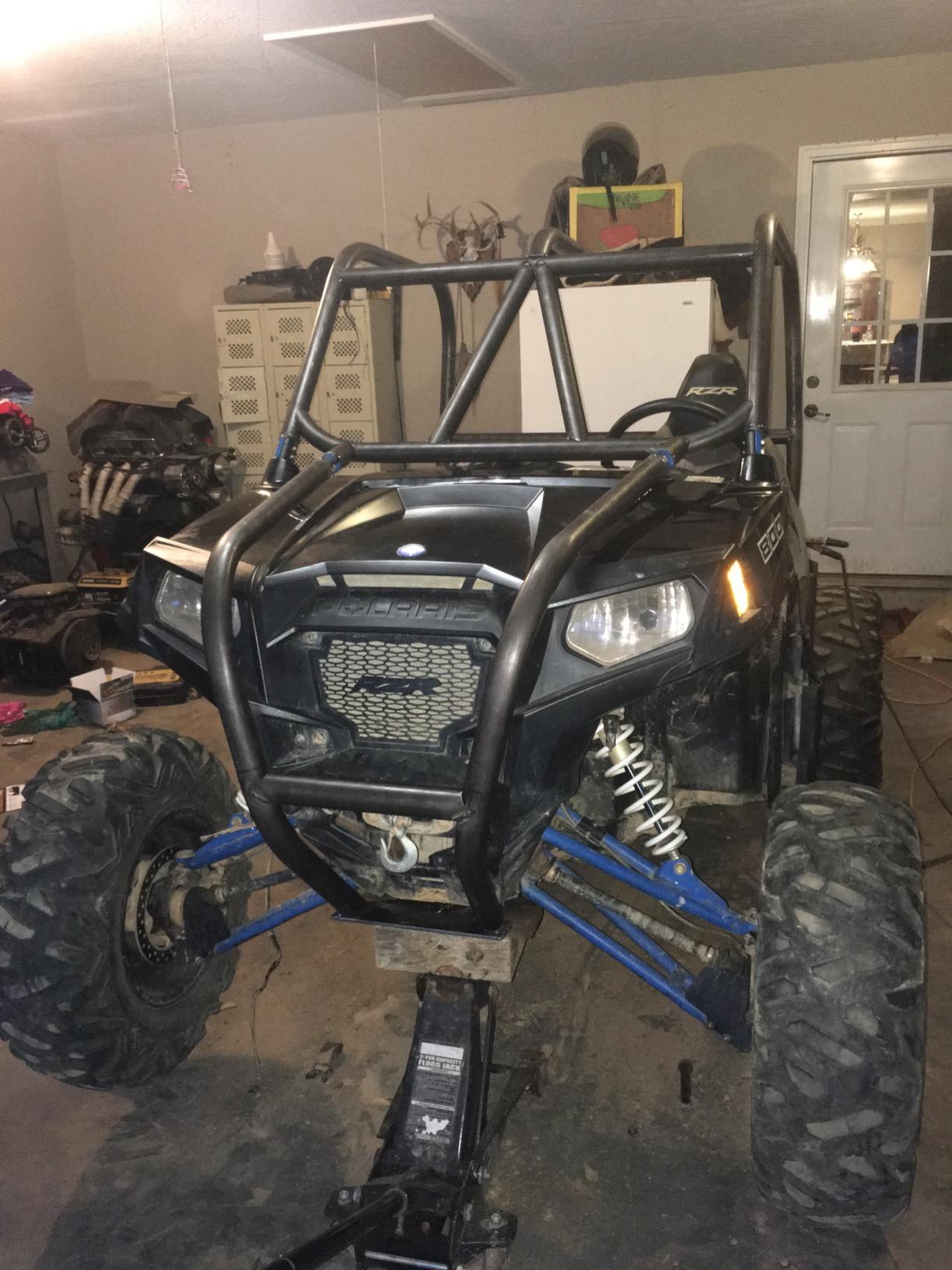

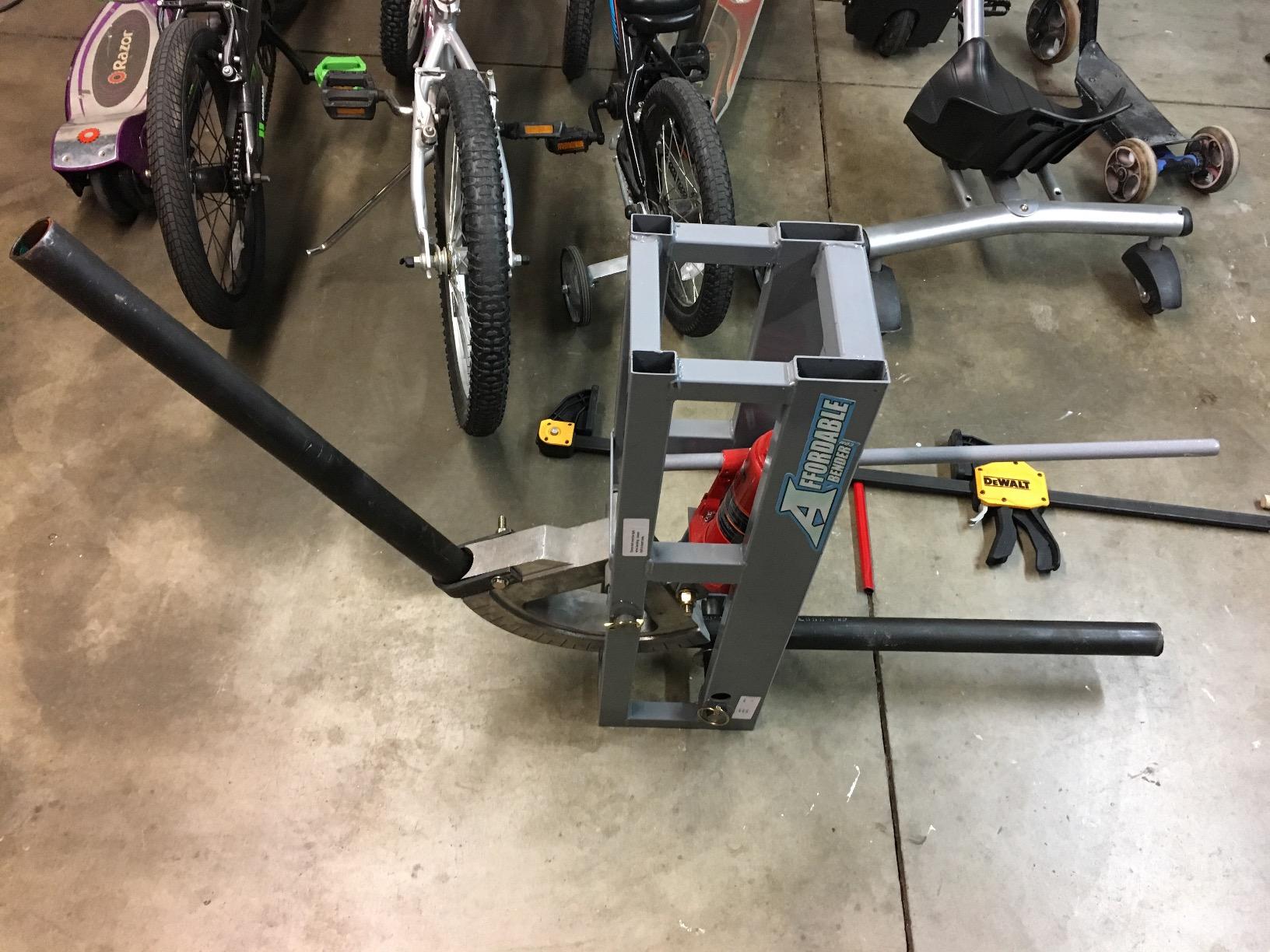

3. Affordable Bender ab105 – Best Value for 1-3/4 Inch Tube
Affordable Bender ab105 1-3/4″ Hydraulic Tube Bender
Hydraulic ram powered with 8 ton bottle jack
50 pounds
Bends 1-3/4 inch tubing
90 degree maximum bend
Die set included
Pros
- Lowest cost route to hydraulic power on 1-3/4 inch tube
- Steady hydraulic pressure instead of arm force
- Die set included with additional sizes available
- Easy to move and store compared with a floor-mounted arm frame
Cons
- Die can slip forward under jack pressure and must be clamped
- Some units arrive with incomplete welds that need gusseting
- No built-in way to align a center mark for repeatable bends
The ab105 is the cheapest path we found to a real hydraulic bend on 1-3/4 inch tube, and that matters more than any other single spec on this page for a first cage. Owners use it for roll bars and report smooth bends on DOM once the machine is set level and the die is properly retained.
It is also the machine we are most careful about recommending, because of its 90 degree ceiling. That single limit rules it out for rear bends and any 180 degree bend, and it rules out the geometry of a lot of cage layouts. Treat it as a main hoop and door bar machine, not as a complete cage solution.
Setup is where the work goes. Several buyers modified the die retainer to stop the die creeping forward under jack pressure, which is a sensible five-minute fix. Others added a degree wheel or a magnetic angle finder because the machine has no marking system of its own. Both modifications are ones a careful builder makes on day one anyway.
Quality control on arrival matters more here than on a brand-name machine. A minority of owners report incomplete welds that benefit from gusseting, and one reported a failure on 1-3/4 inch x .120 wall on a first attempt. Inspect the frame and the die bore before you cut a single length of tube.
How it handles the main hoop specifically
A main hoop is four 90 degree corners, and 90 degrees is exactly this machine’s limit. That is a fit, but only just, and only if the layout genuinely stops at 90. If your cage plan needs the roof to transition into a radius or the leg to kick back, the ab105 has nowhere to go.
Customer service is repeatedly praised by owners, which matters for a machine that uses commodity components and will eventually need a jack or a seal. That is a real advantage over buying a similarly priced import with no parts path.
The honest tradeoff
You are trading away the tooling ecosystem, the degree ring, and the bending capacity that comes with an arm frame. What you keep is the one thing a home fabricator cannot fake, which is steady clamping force on a heavy wall. If your project is a single car and your layout is mostly 90 degree bends, this is a defensible tool.
If you expect a second cage or a third, the money is better spent on an arm-frame machine you can bolt down and grow with. The difference in resale value and in die availability is larger than the difference in the tools themselves.

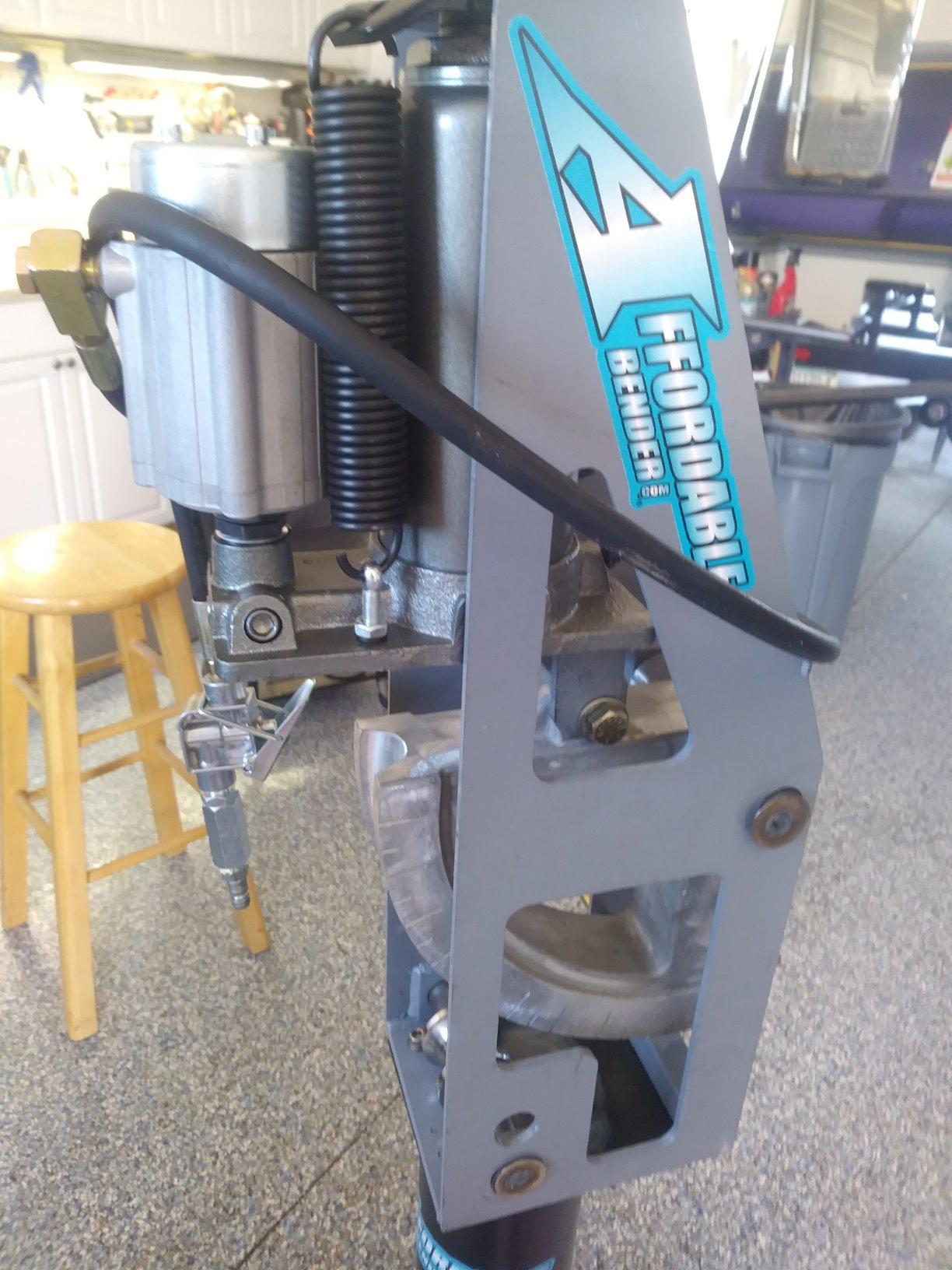

4. Affordable Bender ab103 – Best for 1-1/2 Inch Cage Tube
Affordable Bender ab103 1-1/2″ Hydraulic Tube Bender
Vertical bench hydraulic format
8 ton bottle jack
1-1/2 inch tubing
90 degree maximum bend
Die set included
Pros
- Vertical format is easy to control and easy to set up
- 4.5 rating from owners building real cages
- Hydraulic force removes the arm fatigue variable
- Cleanly upgradable to a 12 ton air or hydraulic jack
Cons
- Bends stop at 90 degrees maximum
- No return spring to retract the die to a rest position
- Dies carry no degree markings and there is no pointer
The ab103 is the same ram architecture as the ab105 in a vertical bench format, and the orientation is the whole story. Because the machine sits on a bench rather than on the floor, the tube stays roughly at chest height through the bend. Owners consistently praise that for control and for simple setup, and at 4.5 across 28 reviews it holds up well against a much larger sample.
It is sized for 1-1/2 inch tubing, which covers a lot of off-road and production cage work. Off-road buggies and UTVs frequently run 1-5/8 inch, so confirm your actual tube size before committing.
Two omissions are worth planning around. There is no return spring, so the die does not retract to a rest position when you release the jack, and the dies carry no degree markings with no pointer on the machine. Both are fixed in an afternoon with an angle finder and a clamp, and both show up in owner write-ups as annoyances rather than dealbreakers.

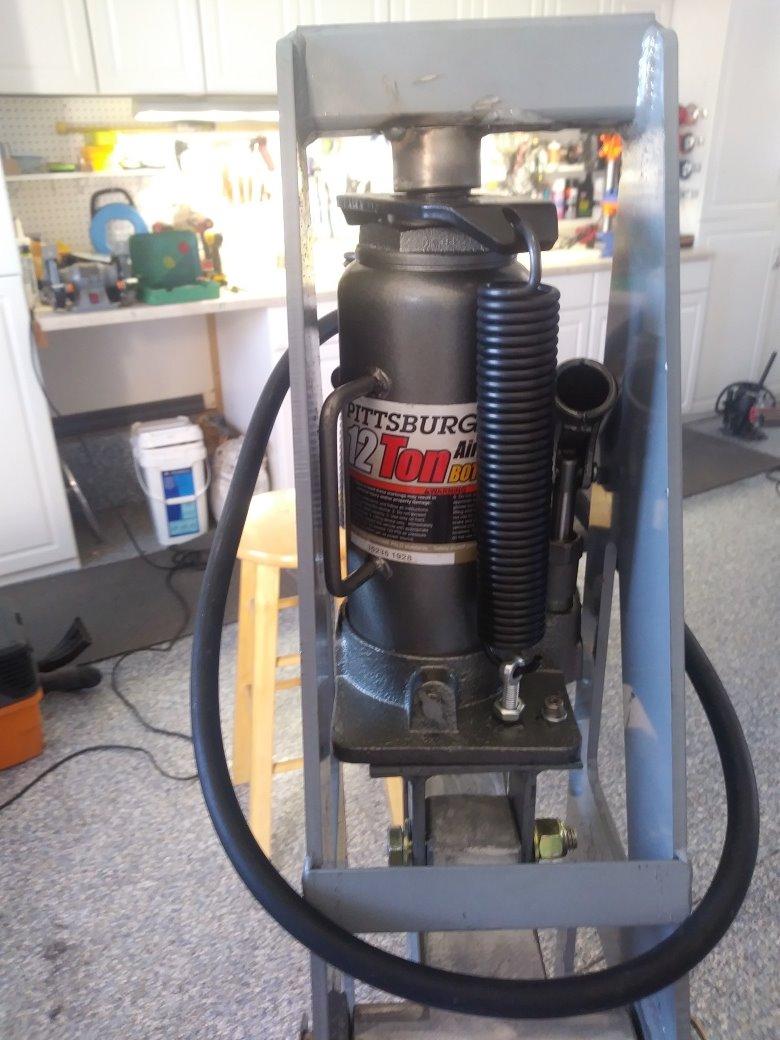

Several owners swapped the supplied bottle jack for a 12 ton air or hydraulic ram and reported smoother operation across the board. That is the same upgrade path the ECOTRIC offers, and it is the single change most likely to improve your results on heavy wall.
Why vertical format helps a first-time builder
On a horizontal arm frame, the tube swings through a wide arc as you pull, and the material can rotate under its own weight as it passes through 90 degrees. Gravity-induced rotation on multi-bend coplanar parts is a known accuracy risk, and it is why experienced builders re-check the angle after every bend. In the vertical position the material stays in one plane under your hand, which removes a whole category of surprise.
The tradeoff is throughput. You load and unload each bend individually instead of indexing the whole part, so multi-bend pieces take longer per part. For a hobbyist building one cage that is irrelevant.
Where it stops being the right answer
It is a 90 degree machine. Rear bends and 180 degree work are out. It is also a 1-1/2 inch machine, so it will not touch the 1-3/4 inch tube that most on-road and SCORE-spec cages use. One reviewer reported centerline radius inconsistency and a die slightly larger than advertised, so verify the die bore against your tube before you start the run.

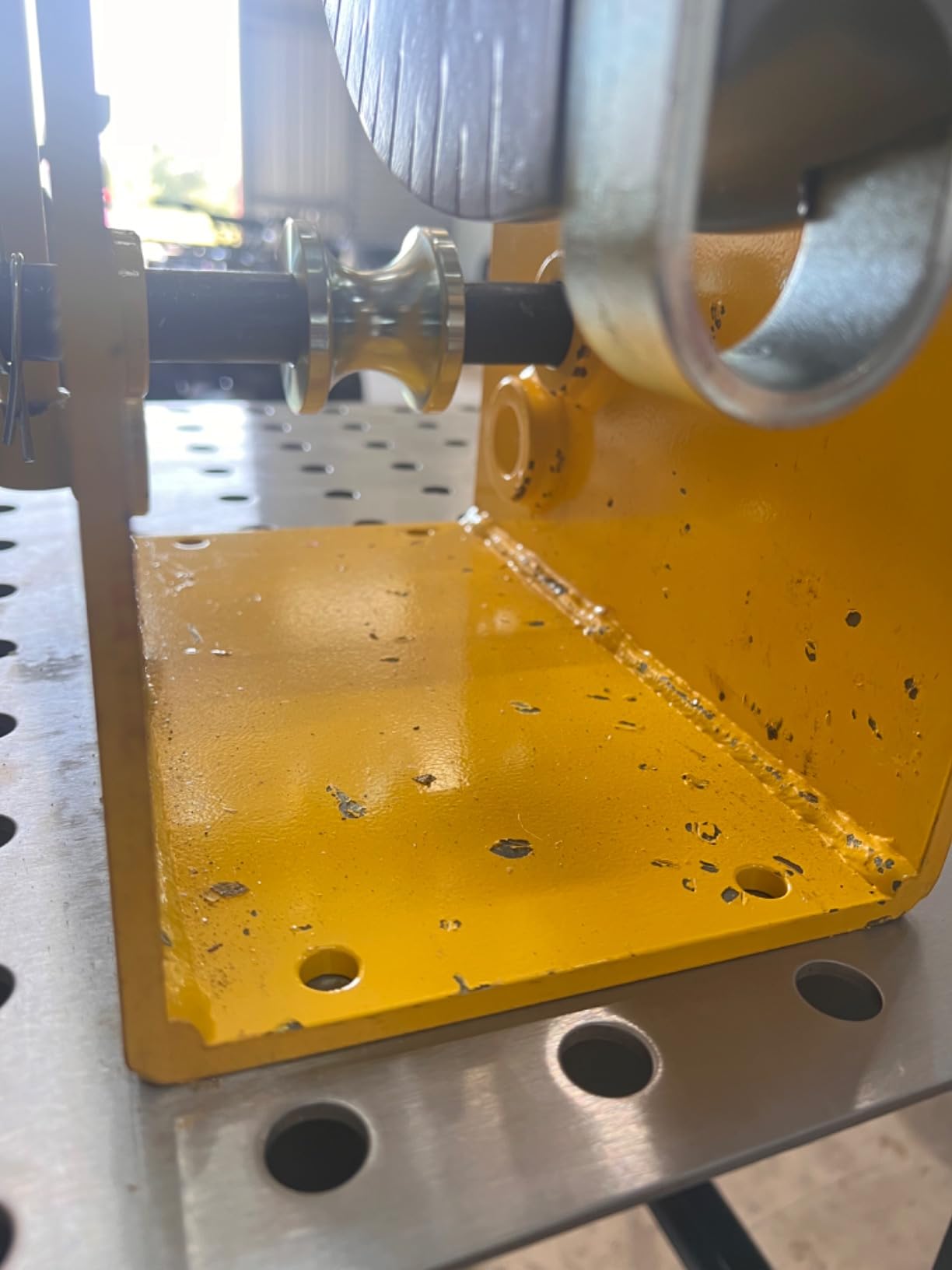

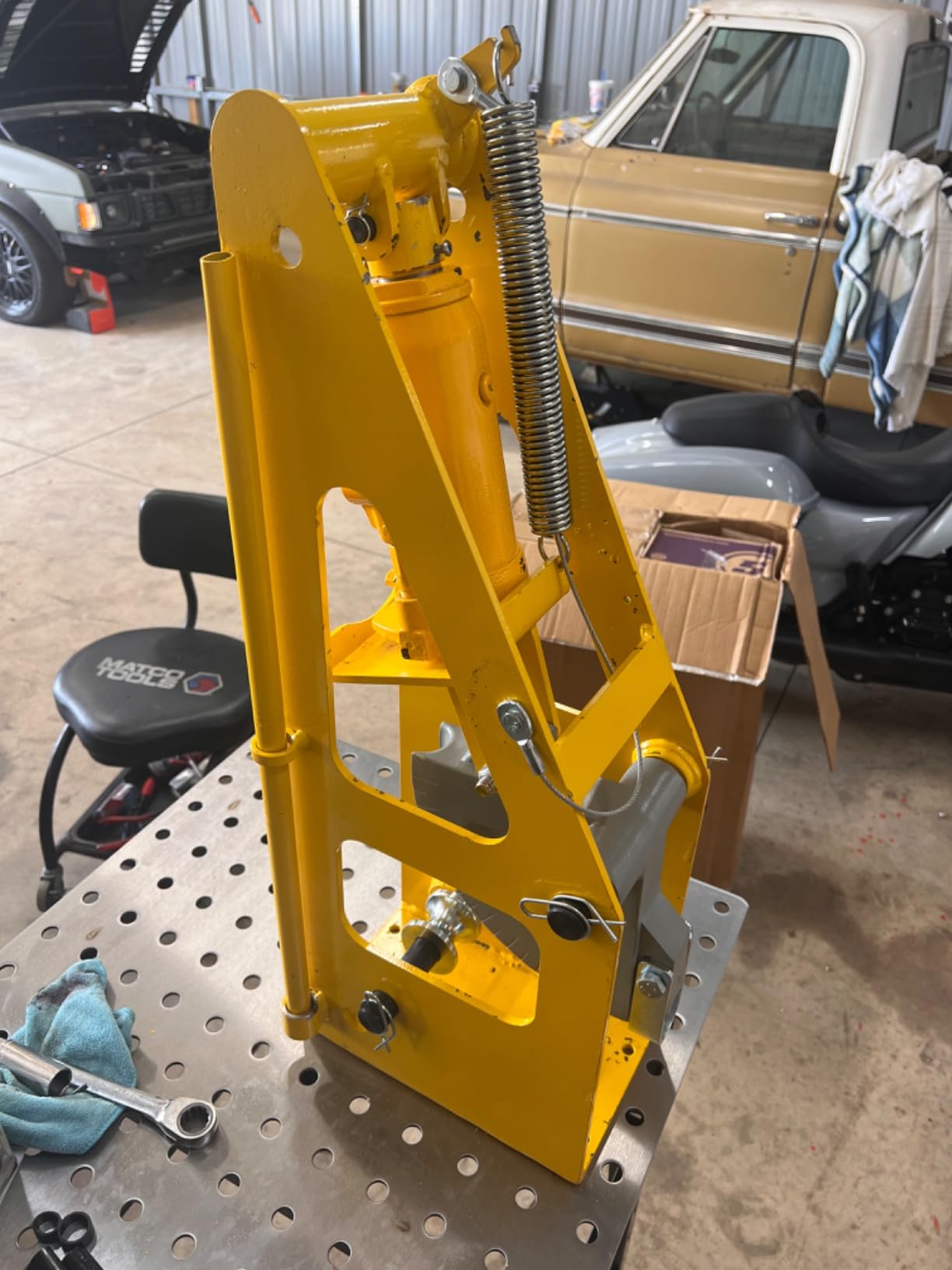

5. Speedway Motors Hydraulic Tubing Bender – Best for Chromoly Tube
Hydraulic Round Tubing Bender, 90 Degree Bends for Roll Cages, 1.50 In. Die
8 ton hydraulic jack
Cast aluminum die with incremental marks
1.50 inch OD die with 7 inch radius
69 pounds
Round tubing to .110 wall mild steel
Pros
- Only machine here with a published chromoly rating of .096 inch wall
- Cast incremental marks on the die make repeated angles accurate
- Machined steel followers
- Compact and portable for one-off cage and chassis work
Cons
- Additional die sizes must be purchased separately
- Some units arrive needing adjustment or gusseting
- Dies are cast aluminum rather than hardened tooling
This is the machine to look at if your cage is chromoly. It is the only one in the lineup with a stated chromoly wall rating, at .096 inch, alongside mild steel to .110 inch. When weight has to come down without giving up strength, chromoly DOM is the usual answer, and that rating is the number to buy against.
The 1.50 inch OD die ships in the box with a 7 inch bend radius, which is a generous radius relative to the tube diameter and leaves plenty of margin before the outside of the bend starts to pull flat.
The cast incremental marks in the die are an underrated detail. Instead of guessing at the angle, you read the mark against the tube and land on the same number every time, which is exactly what a main hoop needs across four corners. Feedback centers on the hydraulic ram producing smooth, repeatable bends and on the marked die helping repeat angles accurately across multiple pieces.
As with the other ram machines, bends stop at 90 degrees and extra die sizes are a separate purchase. At 69 pounds it is the second heaviest machine in the lineup, so plan your bench accordingly.
Whether you need chromoly capability at all
Classic Broncos forum threads draw a clean line on this: professional roll cages and chassis are all DOM, and chromoly DOM is chosen when weight has to come down without losing strength. That is a motorsport or trophy truck budget decision, not a street car decision. If your cage is going on a street vehicle that never sees a start line, mild steel DOM is the correct material and this machine’s chromoly rating is a nice feature you will not use.
That framing matters because the chromoly rating is also the constraint. At .096 inch wall for chromoly, this machine will not take the heaviest chromoly cage tube, so match the rating to your exact material before you buy.
Setup notes before the first bend
Buy a magnetic base or angle finder, because a marked die only helps if the machine sits level and square to the bench. Inspect the arrival condition; some buyers report needing adjustment or added gusseting before first use. And buy your second die size up front rather than after you discover the gap mid-cage.

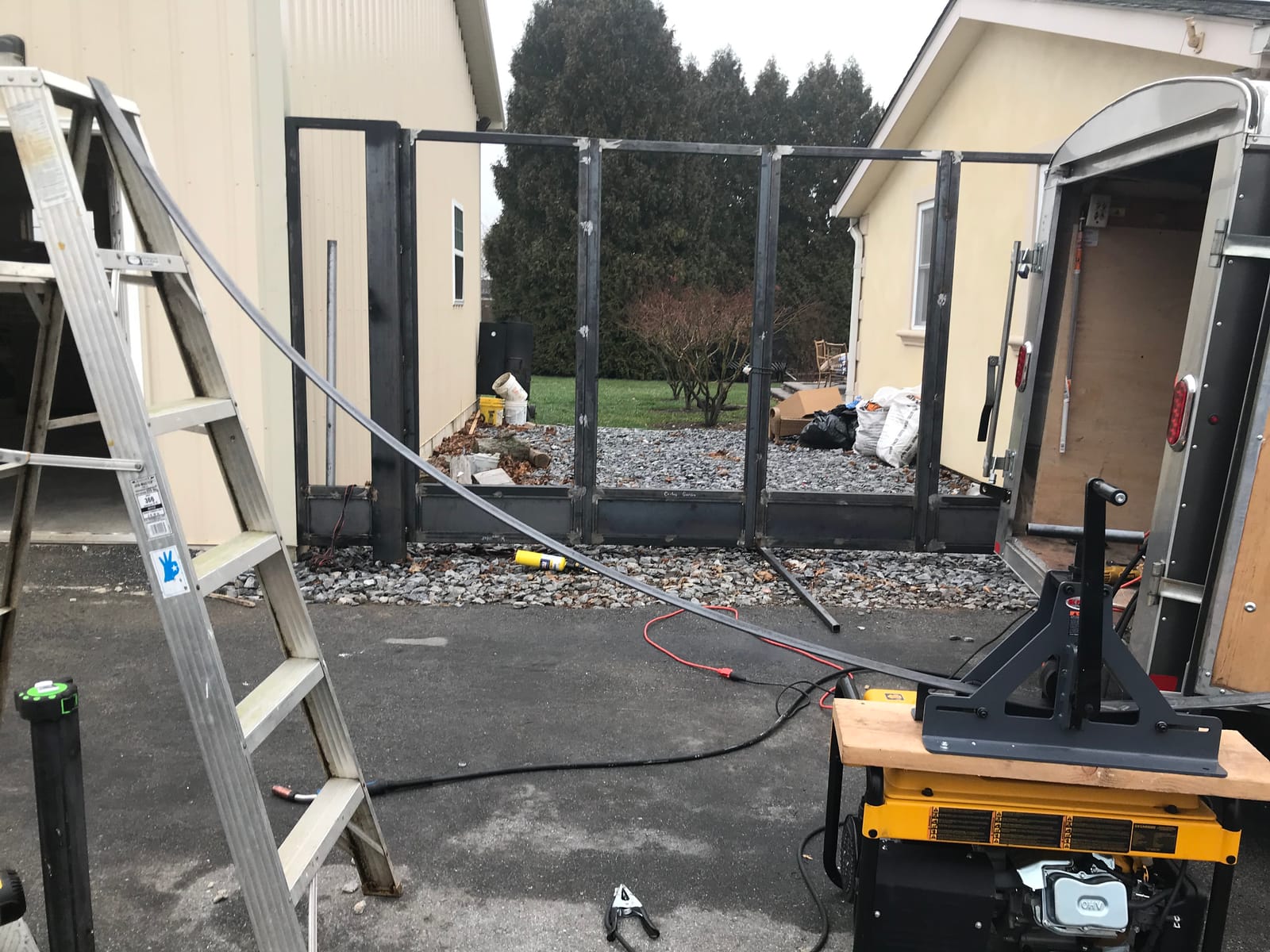

6. KAKA TR-40 – Best Roller for Curved Rails and Cage Sections
KAKA INDUSTRIAL Tube Roller, Manual Square and Rectangular Tube Bender for 1-1/2″x 14 Gauge Square Tubes, Mild Steel/Copper/Aluminum Bending, Multi – Pass Operation for Curves and Circles TR – 40
Bench mounted manual roller
45.5 pounds
23 x 16 x 10 inches
1-1/2 inch square tube at 1/16 wall
Hand powered
Pros
- Most reviewed product here at 4.4 across 220 reviews
- Rolls square tube and flat bar into smooth curves and full circles
- Heavy frame that bolts to a welding table
- Compact footprint that stores easily
Cons
- No technique guidance beyond basic setup
- Diameter fine-tuning needs repeated passes
- Knurled rollers can mark aluminum
The TR-40 is a roller, not a rotary draw bender, so it cannot make a main hoop corner. What it does instead is take a straight length of 1-1/2 inch square tube and walk it into a smooth continuous curve, and at 220 reviews it is the most thoroughly owner-tested machine on this page.

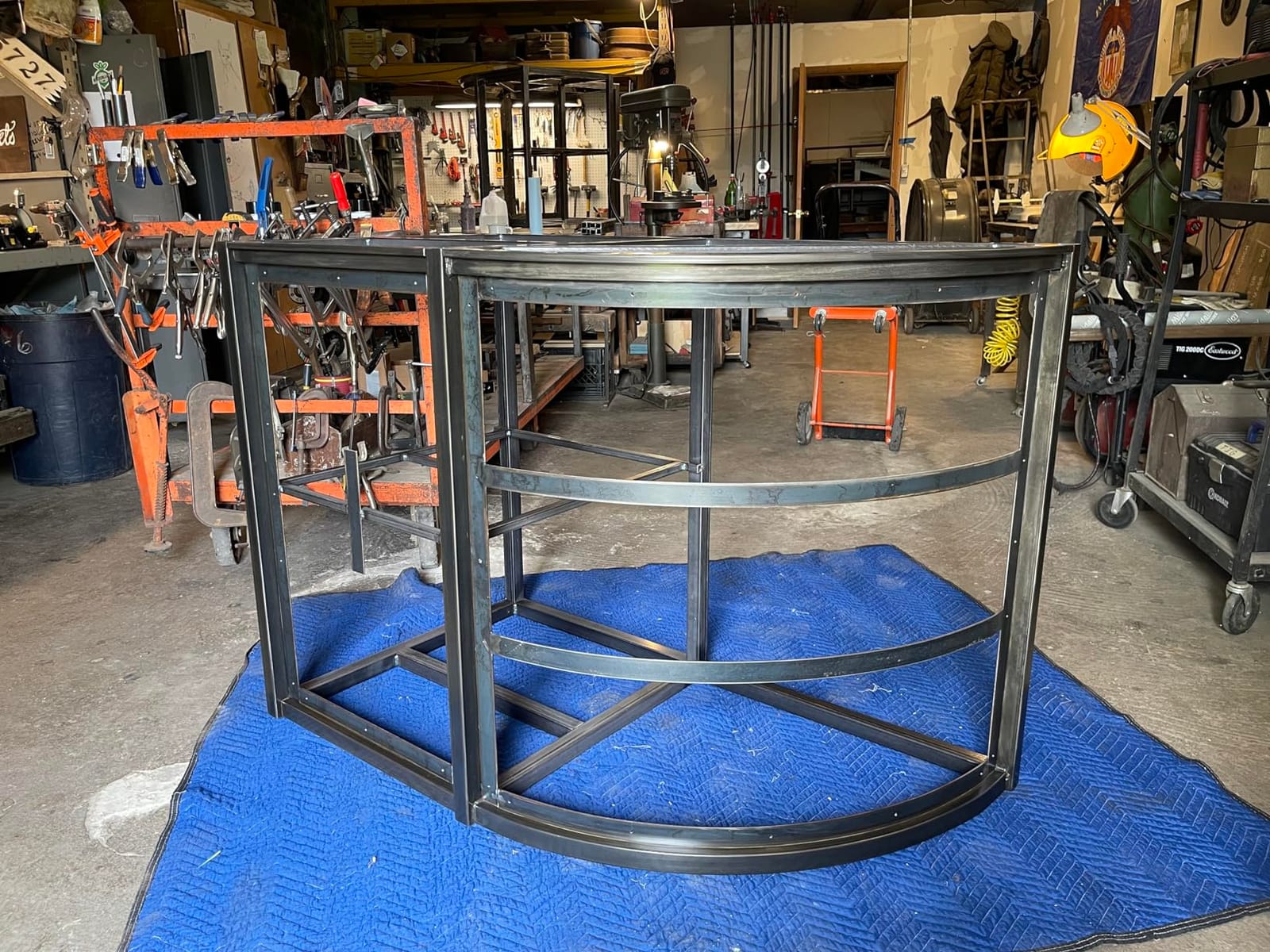

That puts it in a specific and useful part of a cage project. Curved door bars, bent rear section rails, and any arc in a bumper or rock slider are roller work. Owners report smooth, consistent curves and full circles across mild steel, copper and aluminum.
Frame detail matters more than it looks. This is a 45.5 pound bench-mount unit with an upper roller of 3.5 inch diameter and a lower roller of 1.5 inch, bolted to a welding table so it does not walk on the floor during a pass. The lower roller center distance adjusts from about 12.5 to 18.9 inches, which is what sets your curve diameter.
It also handles flat bar up to 2 inch x 1/4 inch in mild steel, which makes it useful for tabs and braces around the cage as well as the rails themselves. The frame carries a one-year warranty.
How it behaves on the first pass and the tenth
Multi-pass bending means the curve radius is reached gradually, and that is where this machine is weakest. Owners report that fine-tuning the diameter is fiddly and requires repeated passes, and that the material can come out over-bent if you rush the roll. Plan on three or four passes for a finished radius and resist adding force to speed it up.
The knurled rollers transfer marks to the material, especially on softer aluminum. If you are rolling aluminum, wrap the tube at the roller contact point or accept the surface finish you will need to grind later.
Why it does not belong in the primary structure
Capacity is the honest limit. It bends 1-1/2 inch square tube at 1/16 inch wall, which is light compared with the 1-3/4 inch x .120 wall that cage primary structure demands. Reviewers consistently place it in hobbyist and one-off work rather than production. Use it for curved rails and secondary tubes, and keep the hoops on a rotary draw machine.
7. KASTFORCE KF5013 – Best Ready-to-Run Six-Die Roller Set
KASTFORCE KF5013 Tube Roller bender Pipe Rolling Machine With 6 Dies For Both Round And Square Tubes
Six interchangeable dies, three round and three square
1.5 inch round capacity
1.6 inch square capacity
No assembly required
Pros
- Six dies ship in the box covering round and square tube
- Arrives ready to run with no assembly
- Heavy frame noticeably thicker than competitors in the same class
- Adjustable lower square dies add real flexibility
Cons
- Oversized rough roller collars cause misalignment and gouging until replaced
- Cast jam nut on the center screw will not hold position
- Brittle plastic T-handle knobs crack or strip
The KF5013 solves the problem that gets most roller buyers disappointed, which is tooling. Six interchangeable dies ship in the box, three round and three square, so you are not waiting weeks for a made-to-order die set before you can make anything.
Owners single out the frame thickness as the standout. Several describe it as roughly twice the thickness of competing machines in the same class, and one buyer put serious production hours on it after mounting or driving the roller. That is the component that decides whether bends stay consistent over a long run.
Round capacity is 1.5 inch and square capacity is 1.6 inch by 1.6 inch. It arrives powder coated and greased with no assembly required, which also removes the setup errors that produce off-radius bends on some competitors.
Which hardware parts to replace before the first bend
This machine needs a short commissioning check, and owners are specific about which parts. The roller collars run oversized and rough out of the box, and they cause misalignment, uneven bends and gouging until they are replaced. The cast jam nut on the center screw does not hold its position, and the plastic T-handle knobs on the top roller are brittle and crack or strip under load.
One buyer had a bearing fail during a second bend. Check the bearing play by hand before you start, replace the knobs and jam nut, and swap the collars if the bores look worn. Budget an hour. After that, several owners report the machine runs well for production hours.
How it fits a cage project
Treat it as a secondary machine, the same way the KAKA. Curved cage rails, bumper arcs and small square sections are the work it does well, at up to 1.6 inch square. Hoop corners and 1-3/4 inch x .120 DOM primary structure are outside its envelope, and no die set changes that.
There is one ergonomic warning worth passing on. A Japanese reviewer noted the long handle makes floor-level use impractical, so plan to mount this on a bench or stand rather than using it on a low workpiece.

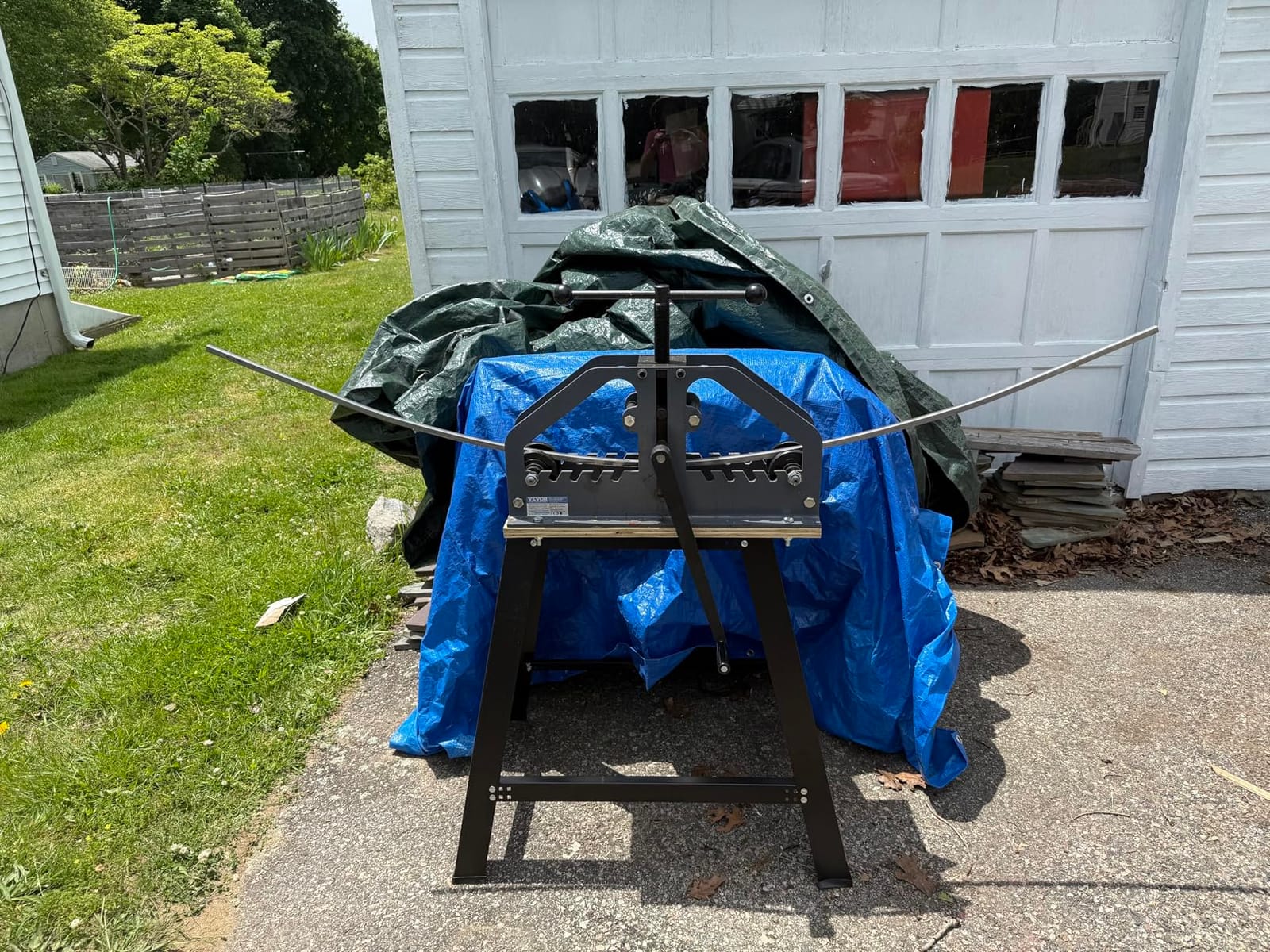

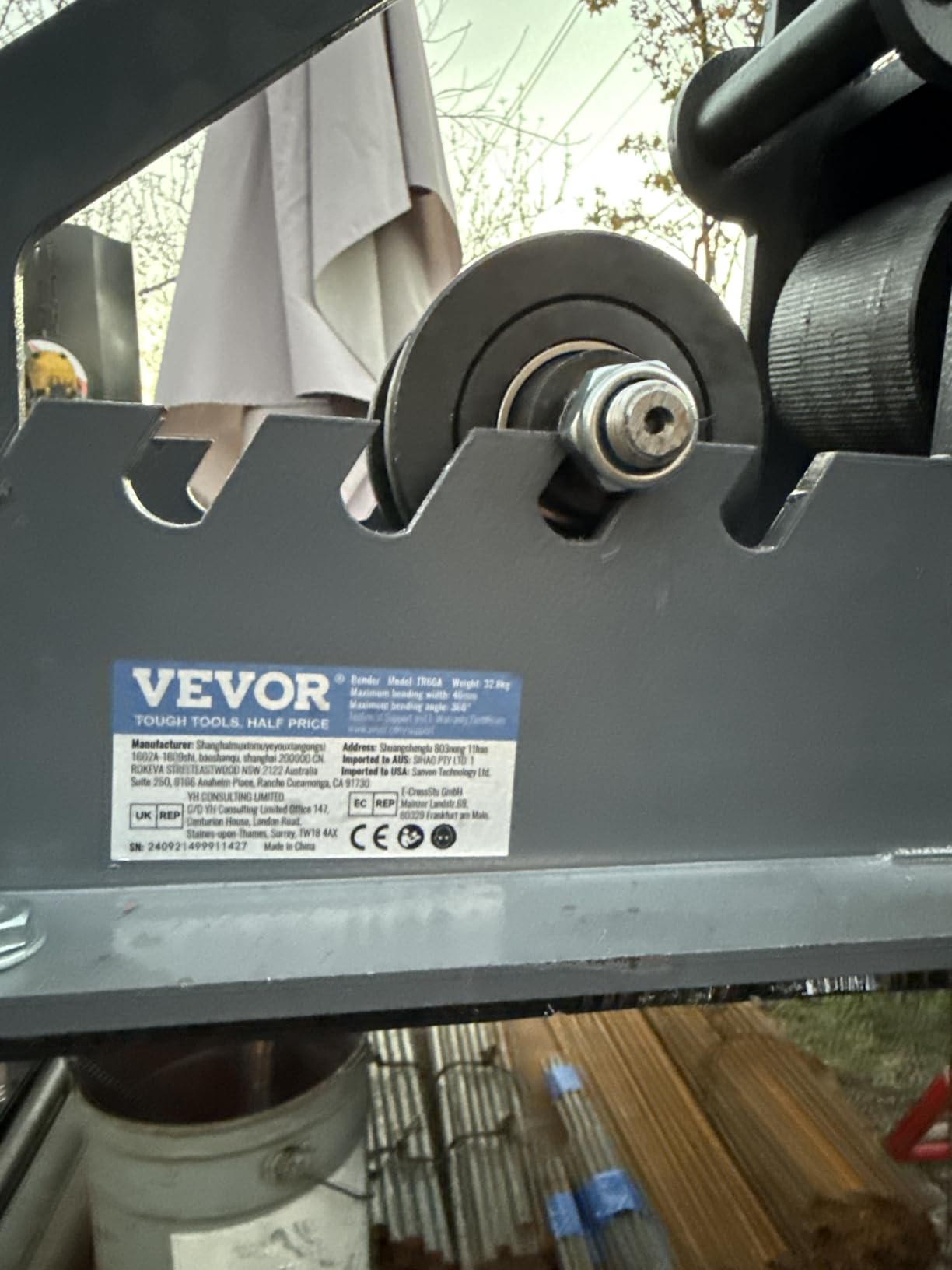

8. VEVOR Tube Roller – Best for Thin-Wall and HVAC Work
VEVOR Tube Roller Bender, Max 1-1/2″ Manual Tube Pipe Roller Bender with 6 Dies, 360° Copper Aluminum Pipe Bending Tool for Square, Round Tube & Flat Bar, Ideal for HVAC Air Conditioning Auto Repair
Manual crank roller
72.3 pounds
24.41 x 12.6 inch footprint
1-1/2 inch pipe capacity
Six dies included
360 degree rotation
Pros
- Manual crank gives precise low-effort control
- Six dies cover square and round tube in one package
- Compact footprint suits a small workshop
- Aluminum capacity up to 0.16 inch wall
Cons
- Steel wall rated only under 0.08 inch which is far below cage requirements
- Carbon steel frame is heavy relative to its bending capacity
- Not a cage-rated machine
The VEVOR earns its place as the light-fabrication option, and its wall rating is the single number to read before anything else. It bends low-carbon steel under 0.08 inch wall and aluminum under 0.16 inch. Cage primary structure at 1-3/4 inch x .120 wall is roughly 50 percent above the steel limit on this machine.
What it is genuinely good at is copper and aluminum pipe and tube for intercooler piping, HVAC work and small aluminum sections, with full 360 degree rotation and a compact 24.41 by 12.6 inch footprint that suits a small workshop.
The manual crank is the best part of the design. Owners report it gives precise, low-effort control over the bend, which is a meaningful advantage over a lever-and-roller setup on thin material where you need finesse rather than force. The six included dies, three square and three round, mean the machine is useful out of the box.
At 72.3 pounds, this is the heaviest machine in the roundup while carrying the thinnest steel rating on the page. That ratio matters if you plan to move it between a bench and the floor, because you will be lifting it every time.
Why we still included it
Because a roundup that only lists machines rated for cage tube is not answering the real question. Most people searching this query own a project car with 1 inch or 1-1/4 inch tubing, or they are building the exhaust and intercooler piping around the cage. For those jobs this machine is a reasonable tool, and buying it instead of a cage machine is the right call.
Its 1-1/2 inch capacity does mean it can form a 1-1/2 inch tube bend. It simply cannot do so in the wall thickness that a safety structure needs, and that is the distinction to hold on to.
When to pick something else
Any time the tube goes into primary structure. The gap between 0.08 inch rated steel and 0.120 inch cage DOM is exactly the gap between a decorative curve and a certified hoop. Choose the WFB2 or the ECOTRIC for cage tube and keep the VEVOR for everything around it.
Buying Guide: Matching the Machine to Your Cage
Match the machine to the wall thickness, not the diameter. Every machine in this roundup advertises a maximum outside diameter. Far fewer publish a wall thickness rating at that diameter, and the two numbers together are the only real capacity figure. The Speedway unit is the only one here with a stated chromoly rating, and that is exactly why it earns its place for chromoly work. For everything else, assume you need the next machine up in size.
Decide whether you need 90 degree bends or full angles. All three hydraulic ram machines on this page stop at 90 degrees. If your layout includes rear bends or any 180 degree return, you need an arm-frame rotary draw bender, full stop. This single check eliminates the cheapest options in the category before you spend anything.
Think about the die ecosystem before the machine. Made-to-order dies can take weeks to months to arrive, which is the most common way people buy a machine and then cannot start. The WFB2 and the ECOTRIC share the Woodward Fab and Pro Tool standard, which is the broadest catalog available to a home shop. Buying into that family is the safer long-term bet.
Budget for the stand and the floor. Horizontal arm-frame machines need to be rigidly mounted. Concrete anchors and a stand are separate from the machine, and a bender that moves under load will not repeat its angle. That is a real constraint in a residential garage, and it is the reason some builders choose the vertical format machines instead.
Manual or hydraulic is a fatigue question, not a quality question. Hydraulic power removes arm fatigue on heavy wall. It does not change bend quality by itself, because bend quality comes down to machine rigidity, correct tooling, material, radius and setup. Buying hydraulic because you think it bends better is the wrong reason; buying it because your fourth bend of the day stops matching your first is the right one.
Plan the CLR before you plan the layout. Decide your target centerline radius, then order that die. Keep the D/R ratio at or above about 3 to 1 for cage tube, remember that springback means you will overbend slightly on springy materials, and remember that the radius on the drawing has to match the radius of the die or the fit-up will not close.
Set aside a weld quality conversation. Most complaints about bent cages trace back to weld penetration and heat control, not to the bender. A flawless bend that gets welded badly is still a weak cage, and no machine on this page fixes that. If you are not confident in your welds, budget for a shop weld or a practice fixture before you buy tooling.
Frequently Asked Questions
What is the best tube bender for roll cages?
The Woodward Fab WFB2 is the best all-round choice here. It is a full-size arm-frame rotary draw bender rated 4.6 from 130 reviews, it ships with a degree ring and indicator for repeatable angles, and it accepts the widely available Woodward Fab and Pro Tool dies. For chromoly tube, the Speedway Motors hydraulic unit is the pick because it is the only machine in the roundup with a published chromoly wall rating.
What size tubing can a mandrel bender bend?
A mandrel bender holds a solid mandrel inside the tube so the pressure die pushes against metal instead of collapsing air, which is what makes very heavy wall and very tight radii workable. Build one and you can size it for your tube, but cage builders on bayarearidersforum reach a clear consensus that a mandrel machine is unnecessary for 1-3/4 inch DOM. A good rotary draw bender with correct tooling handles cage tube without one.
Why are tube bender dies so expensive?
A bend die has to carry the full load of the bend while holding one exact radius in one exact groove, so it is machined from hardened material and ground to tolerance. Small radius dies for thick tube take longer to machine because they remove a lot of steel from a hard billet. Many are also made to order, which is why lead times run from weeks to months and why buying into the largest die catalog is worth the premium.
Do I need to anchor a tube bender to the floor?
Horizontal arm-frame machines such as the Woodward Fab WFB2 and the ECOTRIC should be rigidly mounted, and concrete anchors are the standard method. A bender that moves under load will not repeat its angle, which matters most on multi-bend parts. Vertical bench machines and the ram benders need far less restraint, which makes them a better fit where you cannot drill into the slab.
Can a cheap tube bender make a roll cage?
A ram bender can produce a main hoop but not a complete cage, because most stop at 90 degrees and cannot reach rear bends or any 180 degree bend. More importantly, watch the published wall thickness. Cage primary structure in 1-3/4 inch x .120 wall DOM is far beyond what light rollers and pipe-style machines are rated for, and buying on diameter alone is how people end up with flattened bends in a safety structure.
Conclusion
The best tubing benders for roll cages come down to two machines for most home builds. The Woodward Fab WFB2 takes the top spot because it is a true arm-frame rotary draw bender, the highest rated unit we reviewed, and it plugs into the largest die ecosystem available. The ECOTRIC is the value route, with the same die compatibility and a built-in path to hydraulic power later.
Pick a ram bender only when your layout genuinely stops at 90 degrees, and pick a roller only for the curved rails around the cage, never for primary structure. Check the wall rating against your actual tube before you buy, anchor the machine properly, and run practice bends in scrap before you cut the hoop.
Use the buttons below to compare the machines we covered side by side, and check the degree ring, the die family and the floor plan one more time before you commit.
